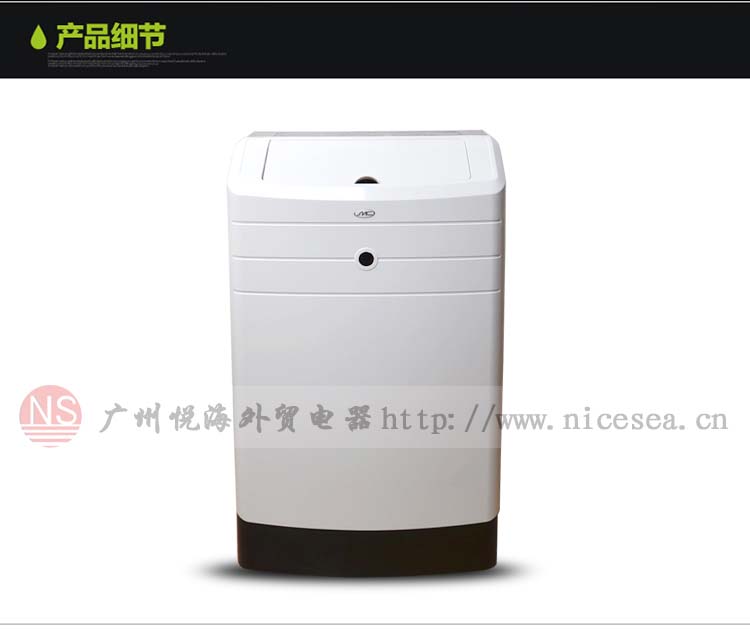

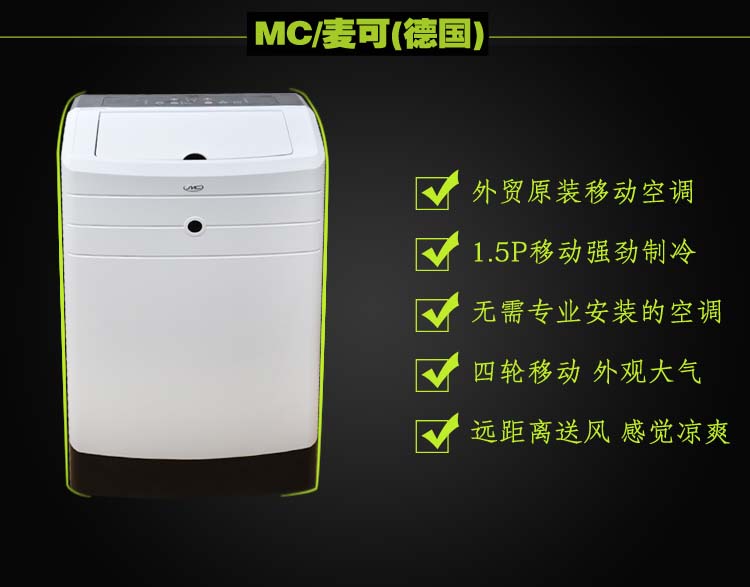

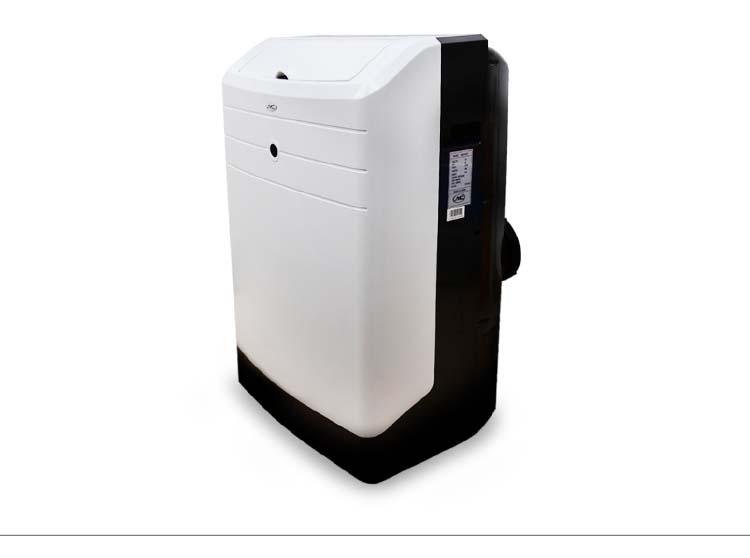

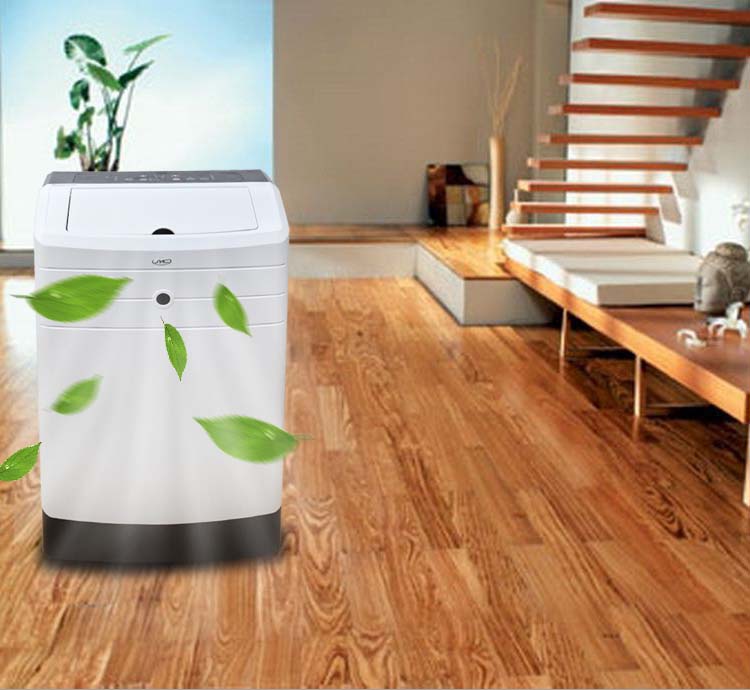

Brand MC[麦可/德国]
Model: SMCAP121C2
Code 220025401760
Power supply Ph-V-Hz 1Ph,115V~,60Hz
Cooling Capacity Btu/h 12000
Input W 1340
Current A 11.9
EER W/W 2.62
Heating Capacity Btu/h N/A
Input W N/A
Rated current A N/A
COP W/W N/A
Moisture Removal L/h 1.2
Rated input consumption W 1700
Rated current A 17
Starting current A ----
Plug type AWG14x3/LCDI

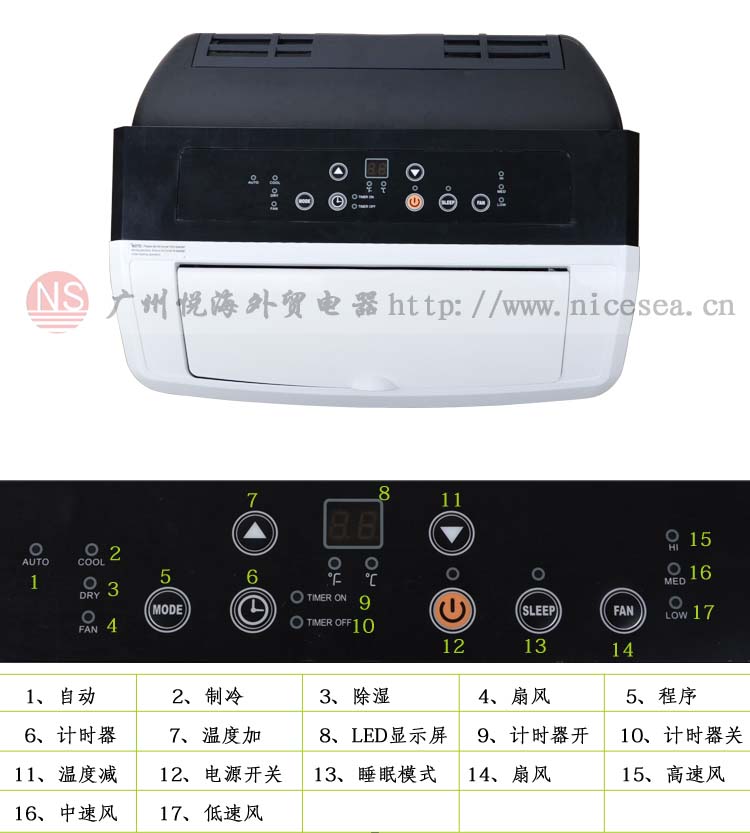

Control type Remote control
Compressor Model EA103M1C-1DZDU1
Type ROTARY
Brand GMCC
Capacity Btu/h 10099
Input W 1015
Rated current(RLA) A 9.25
Locked rotor Amp(LRA) A ----
Thermal protector B440-135-141E
Thermal protector position EXTERNAL
Capacitor uF 55
Refrigerant oil ml ESTER OIL VG74/350
Refrigerant type R410A/420g
Design pressure MPa 4.2/1.5
Indoor fan motor Model YDK23-4AS
Brand Welling
Input W 52/48/42
Capacitor uF 6
Speed(hi/mi/lo) r/min 1330/1210/1040
Evaporator a.Number of rows 2
b.Tube pitch(a)x row pitch(b) mm 21x13.37
c.Fin spacing mm 1.2
d.Fin type (code) Hydrophilic aluminium
e.Tube outside dia.and type mm Ф7, innergroove tube
f.Coil length x height x width mm 340x294x26.74
g.Number of circuits 1
Indoor air flow (Hi/Mi/Lo) m3/h 572/512/435
Indoor noise level (Hi/Mi/Lo) dB(A) 54/51/48
Condenser a.Number of rows 2+1
b.Tube pitch(a)x row pitch(b) mm 19.5x11.6
c.Fin spacing mm 1.2
d.Fin type (code) Unhydrophilic aluminium
e.Tube outside dia.and type mm φ5, innergroove tube
f.Coil length x height x width mm 273x331.5x11.6+273x370.5x23.2
g.Number of circuits 2
Outdoor fan motor Model YDK66-4A
Brand Welling
Input W 121/59
Capacitor uF 8
Speed(hi/mi/lo) r/min 1110/700
Outdoor noise level (Hi/Mi/Lo) dB(A) dB(A) 59/56
Dimension (W*D*H) mm 490x395x812

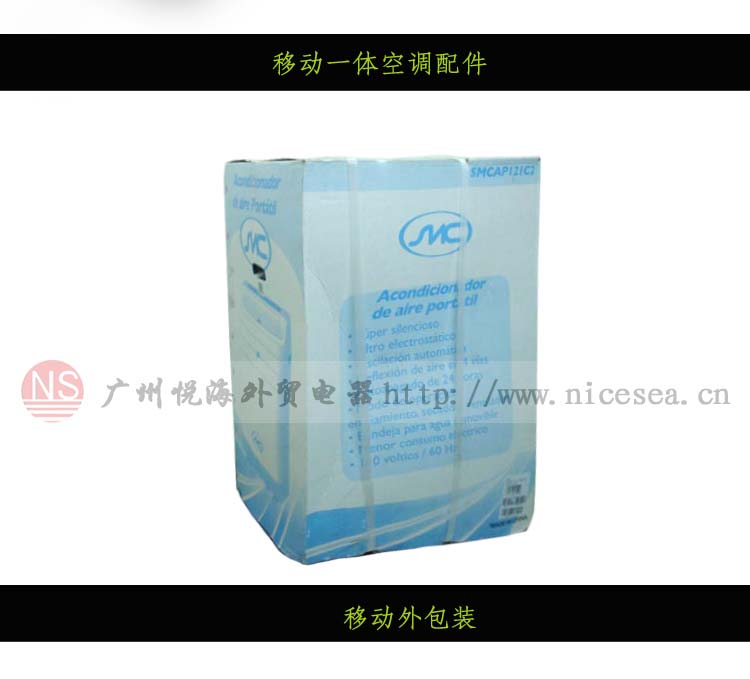

Packing (W*D*H) mm 555x500x860
Net/Gross weight Kg 29/32.5
Operation temp (room temp.) ℃ 17-35/----
Application area Sq. Feet 450-550 |
