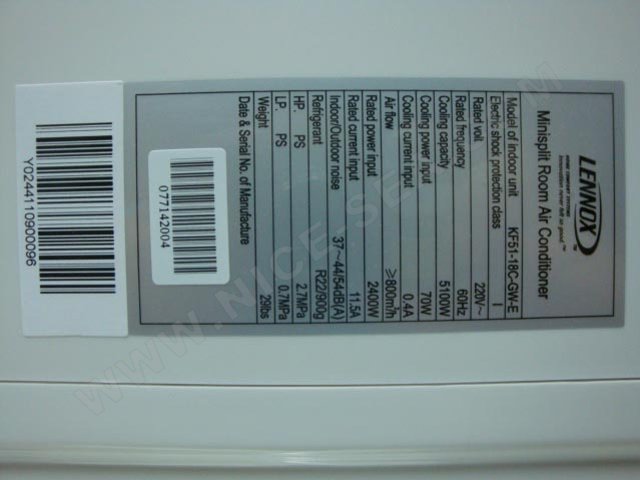

Brand                                      LENNOX[力诺/美国]

Model                                      KF51-18C-GW-E

Power supply                          Ph-V-Hz  220V/60Hz

Cooling                                   Capacity        W    5100

              Input      W    1980

              Rated current        A     9.47

               EER             2.58

Max. input consumption                       W    2400

Max. current                                  A     11.5

Compressor

              Model           PH260M2AS-3KUU1

              Type              Rotary

              Brand            GMCC

              Capacity            W    5625/5685

              Input      W    1815/1930

              Rated current(RLA)      A     51

              Locked rotor Amp(LRA)     A     8.9/9.3

              Thermal protector             Internal

              Capacitor          uF   40

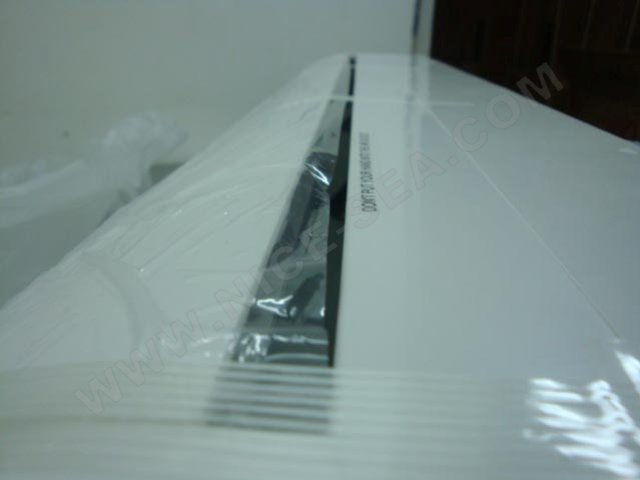

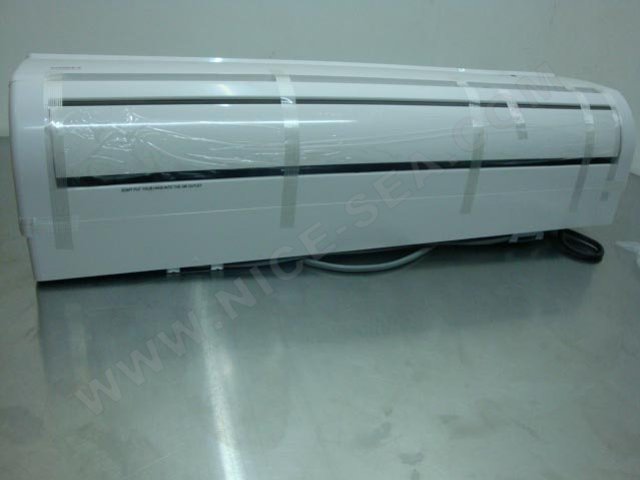

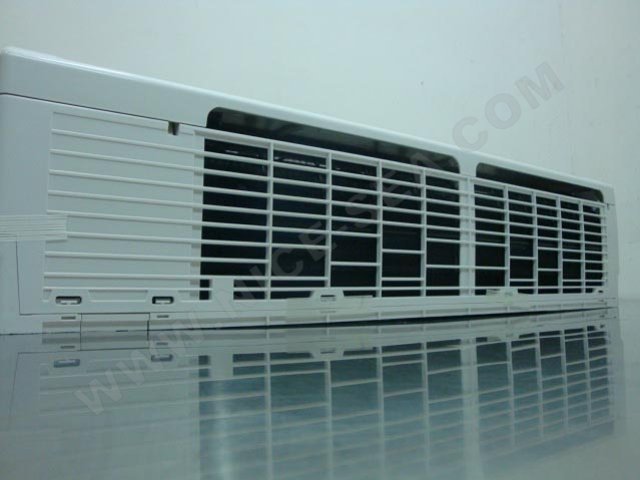

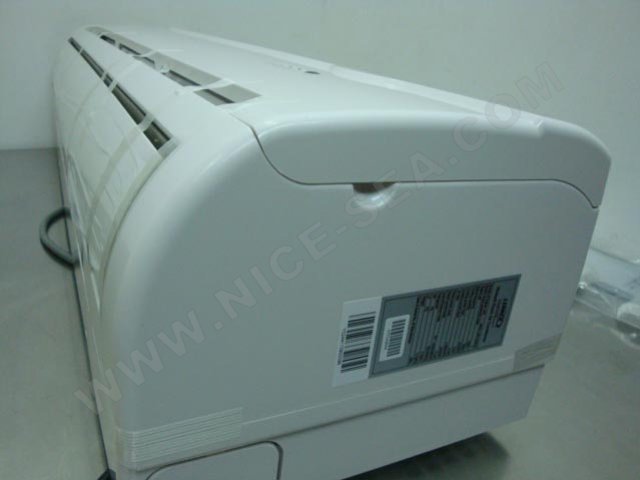

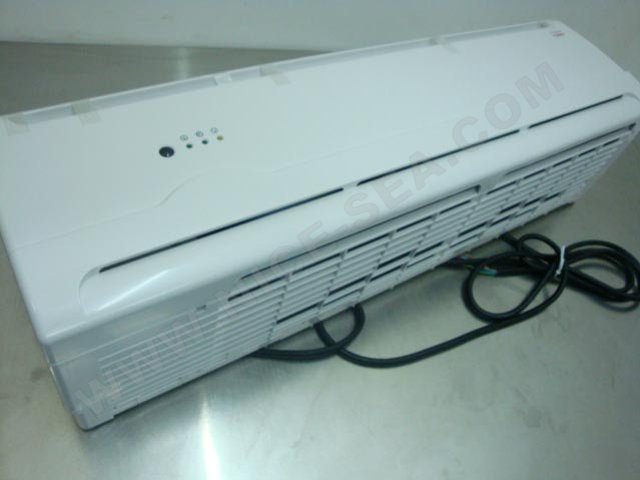

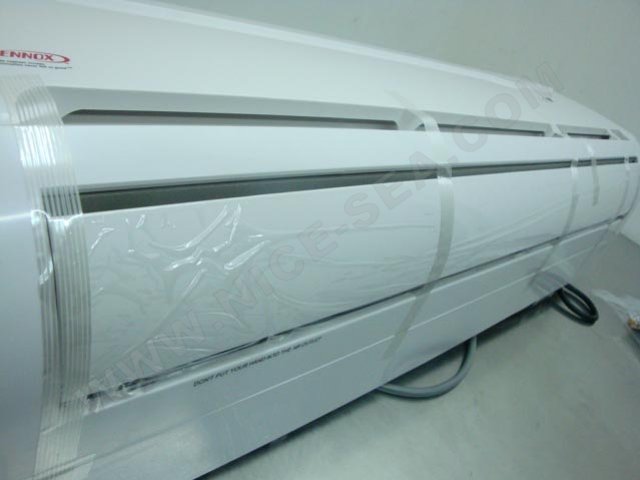

Indoor unit

      Indoor fan motor

              Model           YDK-23-4 D6

              Output Power W    49

              Capacitor         uF   1.2

              Speed  (Hi/Mi/Lo)       r/min      "1250±20/1150±30/1050±40"

       Indoor fan   dia.×length     mm  φ98×707

       Indoor air flow (Hi/Mi/Lo)               m3/h       800

       Noise level(Hi/Mi/Lo)           dB(A)     37-44

       Unit dimension (W*H*D)            mm  900*292*215

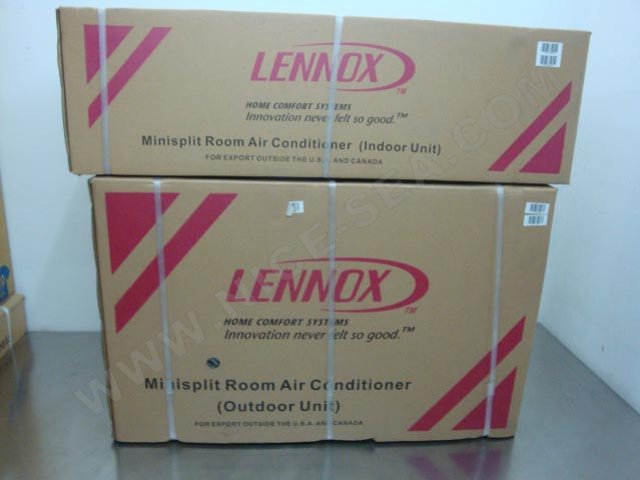

       Packing (W*H*D)         mm  983×377×300

       Net weight           Kg   13

       Gross weight               Kg   15

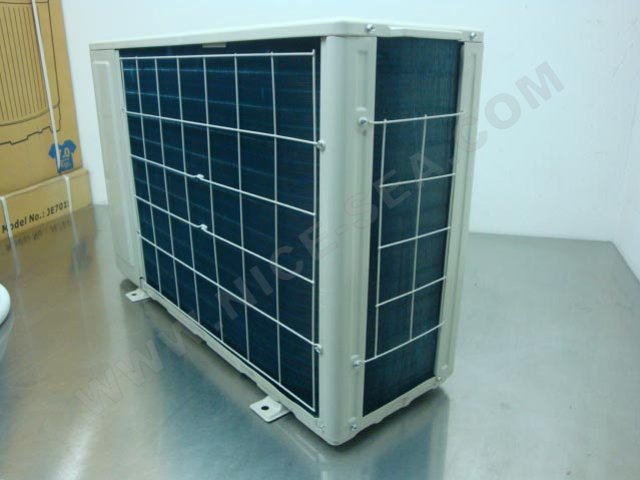

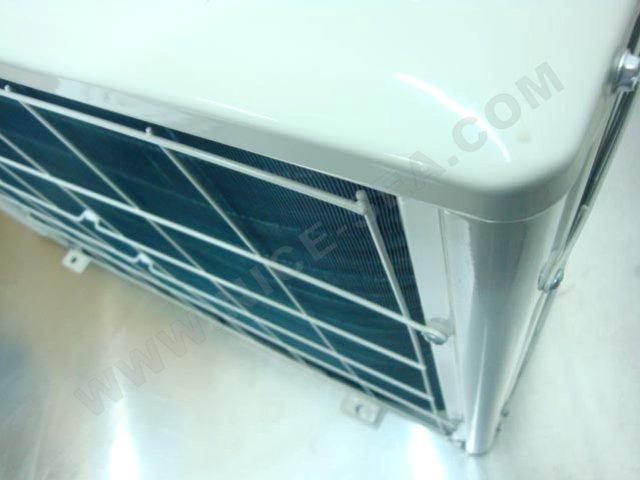

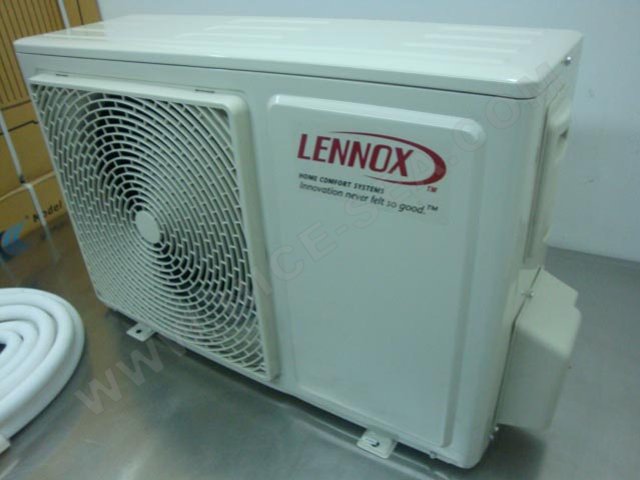

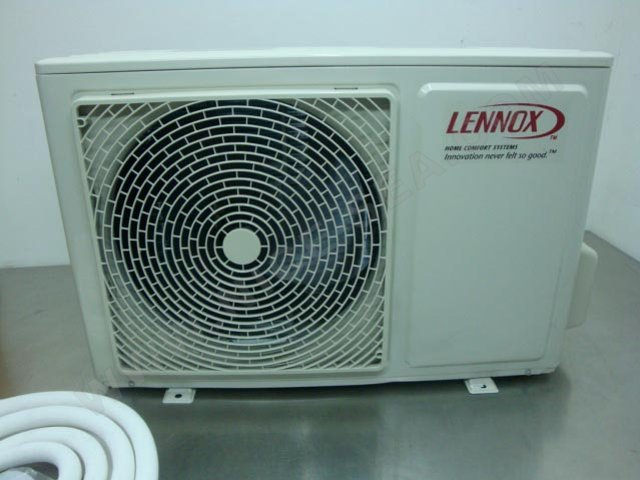

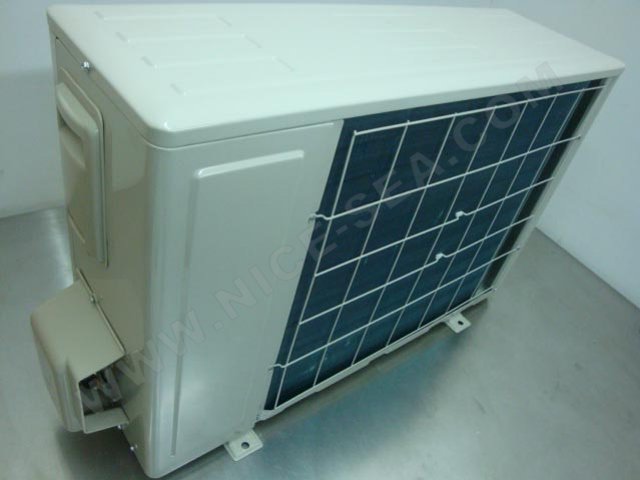

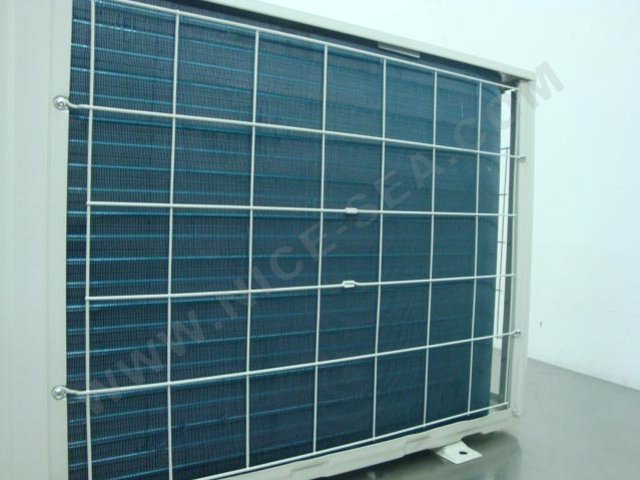

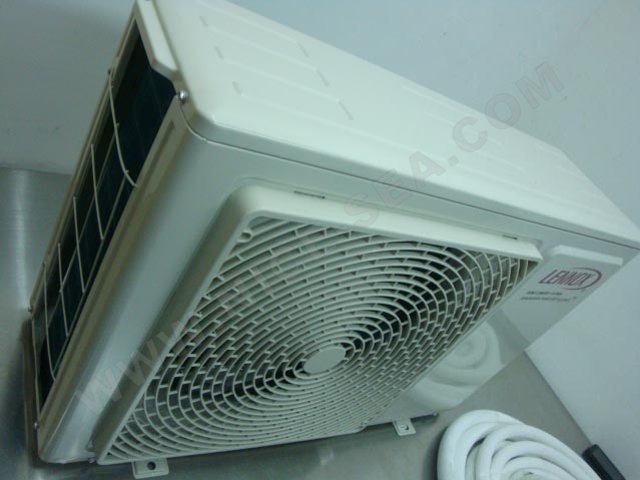

Outdoor unit

      Outdoor fan motor

              Model           YDK-35-6C H

              Output Power               W    72

              Capacitor         uF   2

              Speed         r/min      900

       Outdoor fan             dia.×length     dia.×High       φ408×134

       Noise level            dB(A)     54

       Unit dimension (W*H*D)            mm  795*255*540

       Packing   (W*H*D)           mm  920×335×595

       Net weight           Kg   32

       Gross weight               Kg   36

       Refrigerant type                       R22

       Refrigerant charge         g     870

       Design pressure                        MPa 2.7/0.7

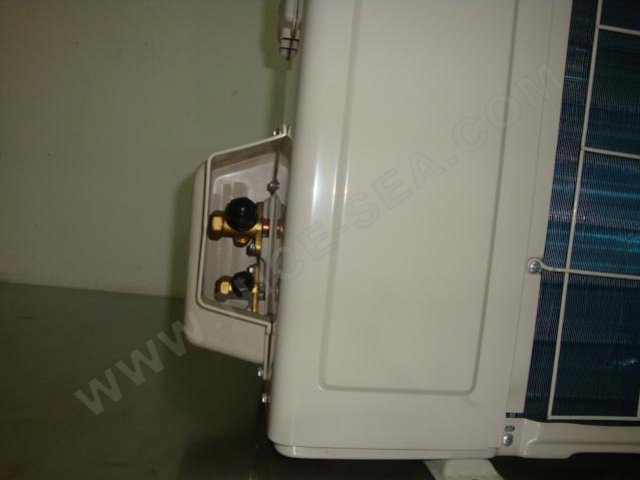

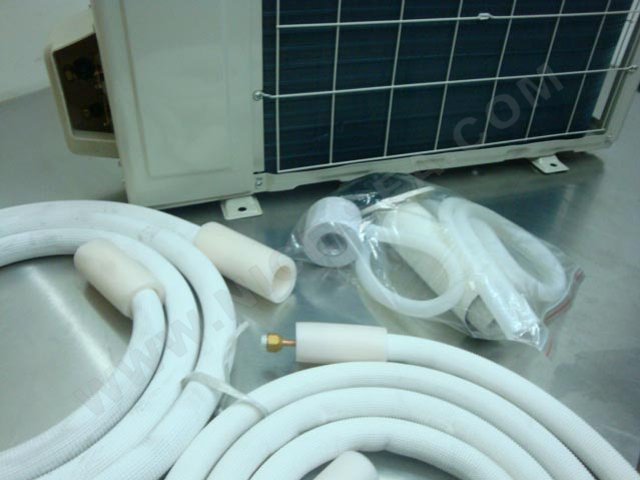

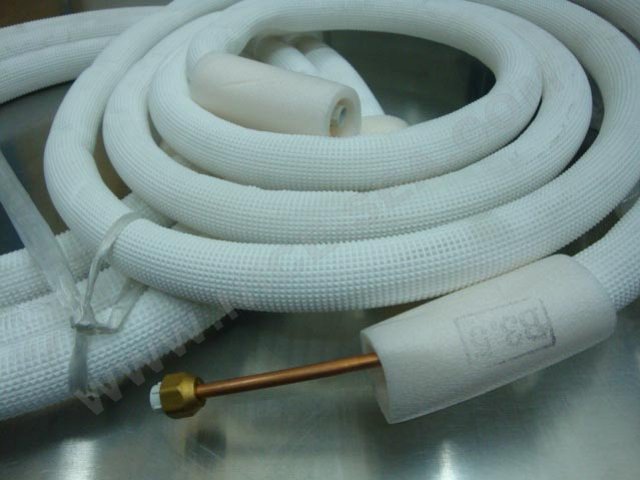

Refrigerant piping/Connection wiring

              Liquid side/Gas side/Length   mm  φ6+φ12.7×4000

              Max. refrigerant pipe length       m    15

              Max. difference in level          m    5
