Brand:                   FULLTECH

Model:                  FSR-09CR1

Code                     2T0032300590

Power supply         Ph-V-Hz  115V~  60Hz, 1Ph

Cooling   Capacity        Btu/h 9000

MINIMUM  CIRCUIT  AMPACITY        A     10.5

MAX.FUSE          A     15

Moisture Removal  L/h  1.0

Starting current      A     40.5

Compressor:

       Model           EH130M1C-1DZDU1

       Type              ROTARY

       Brand            GMCC

       Capacity            Btu/h      9127

       Input             W    835

       Rated current(RLA)      A     7.7

       Locked rotor Amp(LRA)     A     40.5

       Thermal protector         B350-135-141E

       Thermal protector position           EXTERNAL

       Capacitor          uF   45

       Refrigerant oil/oil charge     ml   SUNISO 4GSD/NM56EP.350ml

Indoor fan motor:

       Model           RPG15A

       Brand            Welling

       Input           W    46

       Capacitor         uF   3.0

       Speed(Hi/Mi/Lo)    r/min      1300/1100/820

Indoor coil:

       a.Number of rows         2

       b.Tube pitch(a)x row pitch(b)     mm  20x11.28

       c.Fin spacing                  mm  1.4

       d.Fin type (code)           Hydrophilic aluminium

       e.Tube outside dia.and type   mm  Φ6,innergroove tube

       f.Coil length x height x width     mm  540x240x22.56

       g.Number of circuits             2

Indoor air flow (Hi/Mi/Lo)           m3/h       500/420/320

Indoor noise level (Hi/Mi/Lo)              dB(A)     40/38/30

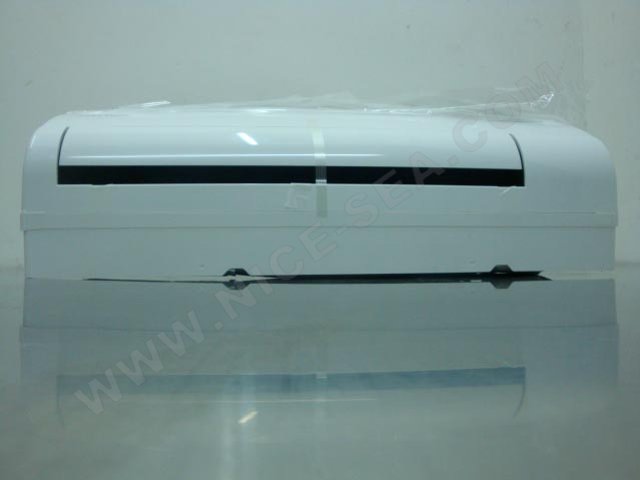

Indoor unit:

       Dimension(W*D*H)      mm  710x189x250

       Packing   (W*D*H)    mm  775x260x324

       Net/Gross weight         Kg   7 / 8.5

Outdoor fan motor:

       Model           YDK25-4A

       Brand            Broad Ocean

       Input           W    61

       Capacitor         uF   4.0

       Speed              r/min      930 / -- / --

Outdoor coil:

       a.Number of rows         1

       b.Tube pitch(a)x row pitch(b)     mm  19.5x11.6

       c.Fin spacing                  mm  1.2

       d.Fin type (code)           Unhydrophilic aluminium

       e.Tube outside dia.and type   mm  Φ5,innergroove tube

       f.Coil length x height x width     mm  676x390x11.6

       g.Number of circuits             2

Outdoor air flow                       m3/h       1300

Outdoor noise level                      dB(A)     51(实测53.2)

Outdoor unit:

       Dimension(W*D*H)      mm  685x260x430

       Packing  (W*D*H)      mm  795x345x495

       Net/Gross weight         Kg   21 / 23

Refrigerant type            g     R22/380g

Design pressure                        MPa 380/150  PSIG

Refrigerant piping:

       Liquid side/ Gas side    mm(inch)       Φ6.35/Φ9.52(1/4"/3/8")

       Max. refrigerant pipe length       m    10

       Max. difference in level          m    5

Connection wiring                    AWG14(Optional)

Plug type               14#

Thermostat type                   Remote Control

Operation temperature:

       Indoor(cooling/ heating)       ℃    17～32/----

       Outdoor(cooling/heating)      ℃    18～43/----

Application area                        m2   13-22
