110V60Hz 11000BTU（1.5P）
Brand GREEModel
GWC12NB-A1NNB4A
Function COOLING HEATING
Rated Voltage 115V~
Rated Frequency 60Hz
Total Capacity (W/Btu/h) 11000Btu/h /
Power Input (W) 1235 /
Rated Input (W) 1520 /
Rated Current (A) 14.6 /
Air Flow Volume (m3/h) (H/M/L)** 550(H)
Dehumidifying Volume (l/h) 1
EER / C.O.P (W/W) 2.6
Energy Class E

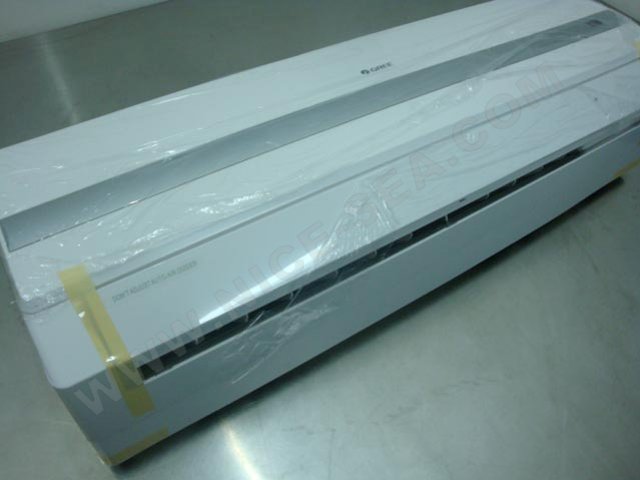

Indoor unit Model of Indoor Unit GWC12NB-A1NNB1A/I、GWC12NB-A1NNB2A/I
Fan Motor Speed (r/min) (H/M/L) 1350/1250/1100/950
Output of Fan Motor (w) 10
Input of Heater (w) /
Fan Motor Capacitor (uF) 4
Fan Motor RLA(A) 0..28
Fan Type-Piece Cross flow fan – 1
Diameter-Length (mm) φ85×596
Evaporator Aluminum fin-copper tube
Pipe Diameter (mm) Φ7
Row-Fin Gap(mm) 2-1.5
Coil length (l) x height (H) x coil width (L) 581X264X25.4
Swing Motor Model MP24AA
Output of Swing Motor (W) 1.5
Fuse (A) PCB 3.15A Transformer 0.2A
Sound Pressure Level dB (A) (H/M/L) 38/35/32
Sound Power Level dB (A) (H/M/L)*** 48/45/42
Dimension (W/H/D) ( mm) 790×265×177
Dimension of Package (L/W/H) ( mm) 870×248×355
Net Weight /Gross Weight (kg) 9/12
Outdoor unit Model of Outdoor Unit GWC12NB-A1NNB1A/O
Compressor Manufacturer/trademark Gree
Compressor Model QX-B17xA030
Compressor Type Rotary
L.R.A. (A) 50
Compressor RLA(A) 9.8
Compressor Power Input(W) 1100
Overload Protector B380-150-141E
Throttling Method Capillary
Starting Method Capacitor
Working Temp Range (℃) 16-30ºC
Condenser Aluminum fin-copper tube
Pipe Diameter (mm) Φ7
Rows-Fin Gap(mm) 1-1.4
Coil length (l) x height (H) x coil width (L) 730X495X12.7
Fan Motor Speed (rpm) 850
Output of Fan Motor (W) 30
Fan Motor RLA(A) 0.7
Fan Motor Capacitor (uF) 7
Air Flow Volume of Outdoor Unit 1500
Fan Type-Piece Axial fan –1
Fan Diameter (mm) 400
Defrosting Method /
Climate Type T1
Isolation I
Moisture Protection IP24
Permissible Excessive Operating Pressure for the Discharge Side(MPa) 2.5
Permissible Excessive Operating Pressure for the Suction Side(MPa) 0.6
Sound Pressure Level dB (A) (H/M/L) 52
Sound Power Level dB (A) (H/M/L) 62
Dimension (W/H/D) ( mm) 798/540/320
Dimension of Package (L/W/H)( mm) 825/355/580
Net Weight /Gross Weight (kg) 30/35
Refrigerant Charge (kg) 0.58
Connection Pipe Length (m) 0
Gas additional charge(g/m) 30
Outer Diameter Φ6(1/4”) Φ6(1/4”)
Φ12(1/2”) Φ12(1/2”)
Max Distance 10 5
20 10 |
