Model KF70-24C-GW-E
Power supply Ph-V-Hz 220V/60Hz
Cooling
Capacity W 7000
Input W 2510
Rated current A 11.2
EER 2.79
Max. input consumption W 3500
Max. current A 16
Compressor
Model PH330X3C-3MUU
Type Rotary
Brand GMCC
Capacity W 5965/6010
Input W 1985/2150
Rated current(RLA) A 49.9
Locked rotor Amp(LRA) A 9.50/10.50
Thermal protector Internal
Capacitor uF 50μF/400V

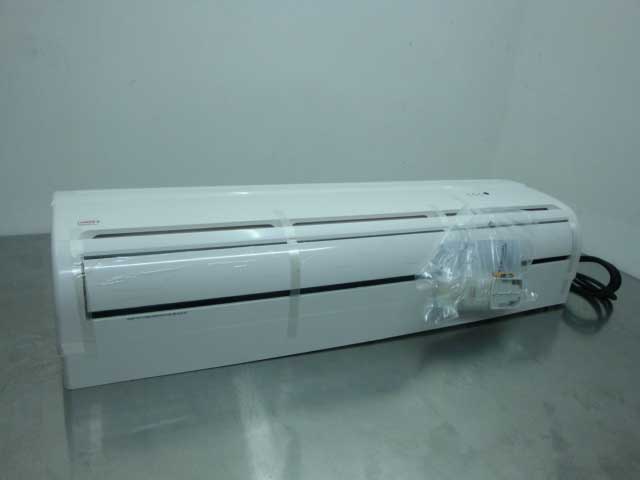

Indoor unit
Indoor fan motor
Model YDK-30-4C
Output Power W 63
Capacitor uF 2
Speed (Hi/Mi/Lo) r/min 1350/1200/1050
Indoor fan dia.×length mm φ102χ880
Indoor air flow (Hi/Mi/Lo) m3/h 1050
Noise level(Hi/Mi/Lo) dB(A) 42-48
Unit dimension (W*H*D) mm 1080×302×220
Packing (W*H*D) mm 1275×392×318
Net weight Kg 16
Gross weight Kg 20
Outdoor unit
Outdoor fan motor
Model YDK-60B-6F
Output Power W 179
Capacitor uF 4
Speed r/min 870
Outdoor fan dia.×length dia.×High φ460×180
Noise level dB(A) 56
Unit dimension (W*H*D) mm 870×310×700
Packing (W*H*D) mm 990×410×780
Net weight Kg 49
Gross weight Kg 56
Refrigerant type R22
Refrigerant charge g 1350
Design pressure MPa 2.7/0.7
Refrigerant piping/Connection wiring
Liquid side/Gas side/Length mm φ9.52＋φ15.88×5000
Max. refrigerant pipe length m 15
Max. difference in level m 5
